55-431-3 Air Conditioning Belts
Model Legend
HNFHE - GP(MIVEC), 5FM/T, Feb96-May96
HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97
HNFH3D - GP R(MIVEC), 5FM/T Feb97-
HNFH4D - GP R(MIVEC) 5FM/T, Nov97-
HNGHE - GPX(MIVEC), 5FM/T, Oct94-
HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95
HNHME - GR, 5FM/T, Oct94-
HNHM3D - GR, 5FM/T, May95-
HNHM4D - GR, 5FM/T, Feb96-
HNXME - GX, 5FM/T, Feb97-
HNXM4D - GX2, 5FM/T, Nov97-
HRFHE - GP(MIVEC), 4FA/T, Feb96-May96
HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97
HRGHE - GPX(MIVEC), 4FA/T, Oct94-
HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95
HRHME - GR, 4FA/T, Oct94-
HRHM3D - GR, 4FA/T, May95-
HRHM4D - GR, 4FA/T, Feb96-
HYFH3D - GP R(MIVEC), 5FA/T, Feb97-
HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-
HYGHE - GPX(MIVEC), 5FA/T, Feb97-
HYXME - GX, 5FA/T, Feb97-
HYXM4D - GX2, 5FA/T, Nov 97-

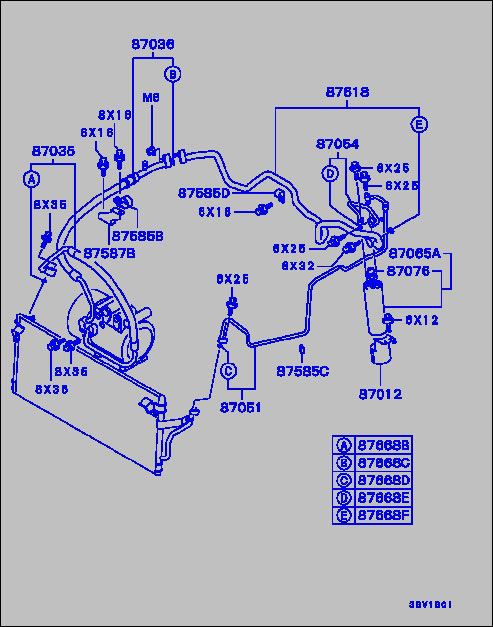

Parts List
87012XX - BRACKET,A/C RECEIVER
87035XX - HOSE,A/C COMPRESSOR DISCHARGE
87036XX - HOSE,A/C COMPRESSOR SUCTION
87051XX - PIPE,A/C CONDENSER OUTLET
87054XX - PIPE,A/C RECEIVER OUTLET
87065AX - RECEIVER ASSY,A/C
87076XX - SWITCH,A/C REFRIGERANT PRESSURE
87582BX - NUT,A/C PIPING
87585BX - CLIP,A/C PIPING
87585CX - CLIP,A/C PIPING
87585DX - CLIP,A/C PIPING
MF477029 - USE MS476418 INSTEAD
87587BX - BRACKET,A/C PIPING
87588BX - BOLT,A/C PIPING
87588CX - BOLT,A/C PIPING
87588DX - BOLT,A/C PIPING
87588EX - BOLT,A/C PIPING
87588FX - BOLT,A/C PIPING
87588GX - BOLT,A/C PIPING
87618XX - PIPE,A/C COMPRESSOR SUCTION
87668BX - O-RING,A/C
87668CX - O-RING,A/C PIPING
87668DX - O-RING,A/C
87668EX - O-RING,A/C
87668FX - O-RING,A/C
