55-431-2 Air Conditioning Compressor and Clutch
Model Legend
HNFHE - GP(MIVEC), 5FM/T, Feb96-May96
HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97
HNFH3D - GP R(MIVEC), 5FM/T Feb97-
HNFH4D - GP R(MIVEC) 5FM/T, Nov97-
HNGHE - GPX(MIVEC), 5FM/T, Oct94-
HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95
HNHME - GR, 5FM/T, Oct94-
HNHM3D - GR, 5FM/T, May95-
HNHM4D - GR, 5FM/T, Feb96-
HNXME - GX, 5FM/T, Feb97-
HNXM4D - GX2, 5FM/T, Nov97-
HRFHE - GP(MIVEC), 4FA/T, Feb96-May96
HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97
HRGHE - GPX(MIVEC), 4FA/T, Oct94-
HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95
HRHME - GR, 4FA/T, Oct94-
HRHM3D - GR, 4FA/T, May95-
HRHM4D - GR, 4FA/T, Feb96-
HYFH3D - GP R(MIVEC), 5FA/T, Feb97-
HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-
HYGHE - GPX(MIVEC), 5FA/T, Feb97-
HYXME - GX, 5FA/T, Feb97-
HYXM4D - GX2, 5FA/T, Nov 97-

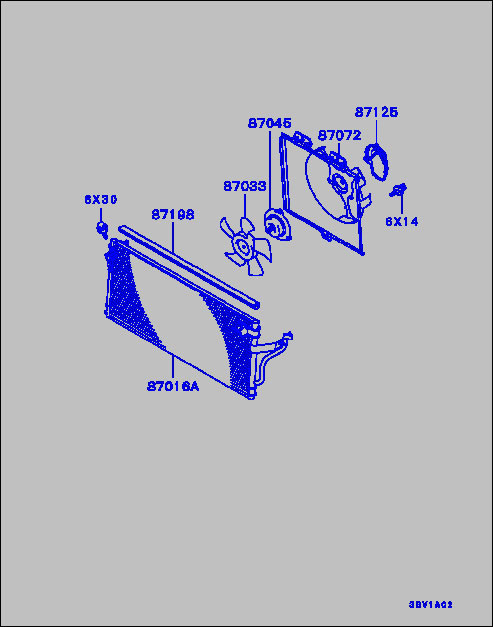

Parts List
87016AX - CONDENSER ASSY,A/C REFRIGERANT
MR315927 - 12/1996-08/2000
MR117000 - 09/1994-11/1996
87033XX - FAN,A/C CONDENSER
87045XX - MOTOR,A/C CONDENSER FAN
87072XX - SHROUD,A/C CONDENSER FAN
87125XX - PROTECTOR,A/C CONDENSER
87198XX - WEATHERSTRIP,A/C CONDENSER
87504BX - BOLT,A/C CONDENSER
87504CX - BOLT,A/C CONDENSER
