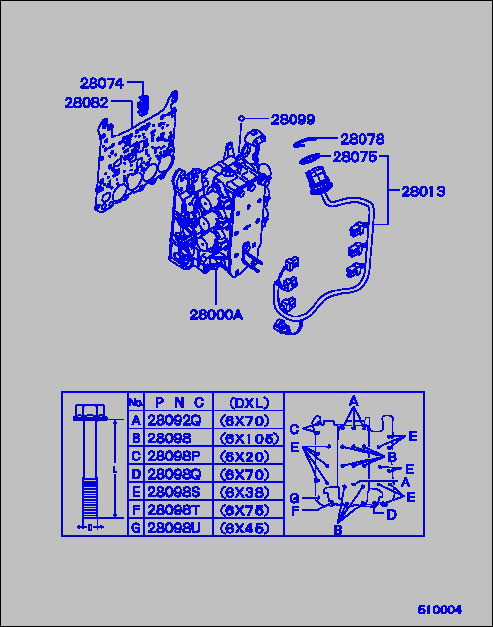

23-160-1 A/T Valve 2

part breakdown

Model Legend

HNFHE - GP(MIVEC), 5FM/T, Feb96-May96

HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97

HNFH3D - GP R(MIVEC), 5FM/T Feb97-

HNFH4D - GP R(MIVEC) 5FM/T, Nov97-

HNGHE - GPX(MIVEC), 5FM/T, Oct94-

HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95

HNHME - GR, 5FM/T, Oct94-

HNHM3D - GR, 5FM/T, May95-

HNHM4D - GR, 5FM/T, Feb96-

HNXME - GX, 5FM/T, Feb97-

HNXM4D - GX2, 5FM/T, Nov97-

HRFHE - GP(MIVEC), 4FA/T, Feb96-May96

HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97

HRGHE - GPX(MIVEC), 4FA/T, Oct94-

HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95

HRHME - GR, 4FA/T, Oct94-

HRHM3D - GR, 4FA/T, May95-

HRHM4D - GR, 4FA/T, Feb96-

HYFH3D - GP R(MIVEC), 5FA/T, Feb97-

HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-

HYGHE - GPX(MIVEC), 5FA/T, Feb97-

HYXME - GX, 5FA/T, Feb97-

HYXM4D - GX2, 5FA/T, Nov 97-

Parts List

28006 - BUSHING,A/T VALVE BODY

MS471101

MS471102

28006P

No matching part numbers found

28028 - SENSOR,A/T VALVE BODY OIL TEMPERATURE

MD755848 - ALL MODELS

28059 - SLEEVE,A/T VALVE BODY FAIL SAFE VALVE

MD756479

MD757311

MD756370

28059P

No matching part numbers found

28064 - VALVE,A/T VALVE BODY FAIL SAFE

MD757326

MD756478

MD757736

MD757321

28064P

No matching part numbers found

28064Q

No matching part numbers found

28067 - SPRING,A/T VALVE BODY FAIL SAFE VALVE

MD757322 - ALL MODELS

28068 - VALVE,A/T INSIDE VALVE BODY DAMPING

MD757760 - ALL MODELS

28069 - SPRING,A/T INSIDE VALVE BODY DAMPING VAL23 160

MD757746 - ALL MODELS

28072 - SEAL RING,A/T VALVE BODY INR

MD757761 - ALL MODELS

28083 - PLATE,A/T VALVE BODY

MD759637

MD759634

MD756451

MR336708

MD756450

MR486184

MD761995

MR389320

MD759818

28083Q

No matching part numbers found

28085 - PIN,A/T VALVE BODY INR

MF472402

MF472403

28086 - O-RING,A/T VALVE BODY INR

MD622027

MD622028

MD622020

MD611717

MD707603

MD707187

28089 - SCREW,A/T VALVE BODY INR

MD757318 - ALL MODELS

28092 - BOLT,A/T VALVE BODY INR

MD755494

MS101201

MS101202

28093 - BALL,A/T VALVE BODY INR

MF540008 - ALL MODELS

28197 - ROLLER,A/T VALVE BODY

MD731215

MD713080

28215 - PLUG,A/T VALVE BODY

MD756449 - ALL MODELS

28264 - SPRING,A/T VALVE BODY TORQUE CONVERTER V23 160

MD756494 - ALL MODELS

28291 - VALVE,A/T VALVE BODY MANUAL

MD758088

MD760204

28297 - VALVE,A/T VALVE BODY REGULATOR

MD756356 - ALL MODELS

28304 - VALVE,A/T VALVE BODY TORQUE CONVERTER

MD756357 - ALL MODELS

28531 - SLEEVE,A/T VALVE BODY DAMPER CLUTCH CONT23 160

MD758819 - ALL MODELS

28541 - SPRING,A/T VALVE BODY BALL VALVE

MD719332

MD761453

MD758696

28541P

No matching part numbers found

28543 - SPRING,A/T VALVE BODY DAMPER CLUTCH CONT23 160

MD756459 - ALL MODELS

28568 - SPRING,A/T VALVE BODY REGULATOR VALVE

MD756458 - ALL MODELS

28572 - VALVE,A/T VALVE BODY DAMPER CLUTCH CONTR23 160

MD758569 - ALL MODELS
