23-150-2 A/T Gears and Governer 5sp -12/97

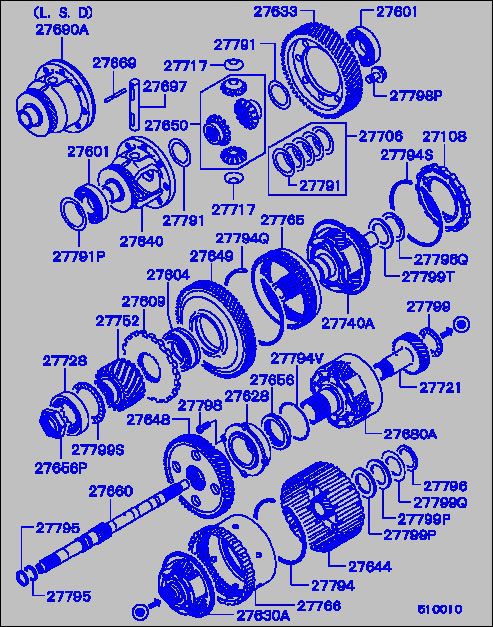

part breakdown

Model Legend

HNFHE - GP(MIVEC), 5FM/T, Feb96-May96

HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97

HNFH3D - GP R(MIVEC), 5FM/T Feb97-

HNFH4D - GP R(MIVEC) 5FM/T, Nov97-

HNGHE - GPX(MIVEC), 5FM/T, Oct94-

HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95

HNHME - GR, 5FM/T, Oct94-

HNHM3D - GR, 5FM/T, May95-

HNHM4D - GR, 5FM/T, Feb96-

HNXME - GX, 5FM/T, Feb97-

HNXM4D - GX2, 5FM/T, Nov97-

HRFHE - GP(MIVEC), 4FA/T, Feb96-May96

HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97

HRGHE - GPX(MIVEC), 4FA/T, Oct94-

HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95

HRHME - GR, 4FA/T, Oct94-

HRHM3D - GR, 4FA/T, May95-

HRHM4D - GR, 4FA/T, Feb96-

HYFH3D - GP R(MIVEC), 5FA/T, Feb97-

HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-

HYGHE - GPX(MIVEC), 5FA/T, Feb97-

HYXME - GX, 5FA/T, Feb97-

HYXM4D - GX2, 5FA/T, Nov 97-

Parts List

27108 - ONE-WAY CLUTCH,A/T DIRECT CLUTCH

MD762428 - ALL MODELS

27601 - BEARING, A/T DIFF CASE

MD710663 - ALL MODELS

27601P

No matching part numbers found

27604 - BEARING,A/T OUTPUT SHAFT

MD756138

MD754594

27609 - GEAR,A/T PARKING LOCK

MD762206 - ALL MODELS

27628 - BEARING, T/F DRIVE GEAR

MD759808 - ALL MODELS

27630A - CARRIER ASSY,A/T O/D PLANETARY

MD758111

MD760812

27633 - GEAR, A/T DIFF DRIVE

MD757190

MD757594

MD757593

MD760946

27640 - CASE, A/T DIFF

MD755473

MD755470

MD770937

27644 - GEAR,A/T PLANETARY REV SUN

MD761010

MD758249

27648 - GEAR,T/F DRIVE

MD761930

MD759807

27649 - GEAR, T/F DRIVE

MD761931

MD758890

MR498327

27650 - GEAR KIT, A/T DIFF

MD762902

MD748538

MD748541

27656 - NUT, A/T POWER TRAIN

MD755333

MD761024

MD755407

27656P

No matching part numbers found

27660 - SHAFT,A/T INPUT

MD758253 - ALL MODELS

27669 - PIN, A/T POWER TRAIN

MD712247

MD762419

MD706557

27680A - CARRIER ASSY,A/T OUTPUT PLANETARY

MD758261

MD760930

MR453051

MR430696

MD760625

27690A - DIFFERENTIAL ASSEMBLY, a/T LIMITED SLIP DIFF

MD735332

MD770978

27697 - SHAFT, A/T DIFF PINION

MD704947

MD722632

27706 - SPACER SET, A/T DIFF SIDE GEAR

MD997795 - ALL MODELS

27717 - WASHER, A/T POWER TRAIN

MD722981 - ALL MODELS

27721 - GEAR,A/T U/D SUN

MD758786

MD760940

27728 - BEARING, A/T OUTPUT GEAR

MD761020 - ALL MODELS

27752 - GEAR, A/T OUTPUT SHAFT

MD762235 - ALL MODELS

27765 - GEAR,A/T DIRECT ANNULUS

MD761932 - ALL MODELS

27766 - GEAR,A/T LOW & REV ANNULUS

MD758248

MD761012

MD760626

27791P

No matching part numbers found

27794 - SNAP RING,A/T POWER TRAIN

MD755227

MR399568

MD755885

MD761027

MD761025

MD761097

27794Q

No matching part numbers found

27794S

No matching part numbers found

27795 - SEAL RING,A/T POWER TRAIN

MD722551 - ALL MODELS

27796 - RACE,A/T POWER TRAIN

MD754796

MD754794

MD724358

MD754797

MD723064

MD723065

MD707268

MD754798

MD759681

MD761022

MD754795

MD707267

27796Q

No matching part numbers found

27798 - BOLT, A/T POWER TRAIN

MD763079

MD759105

MD952231

MD040557

MF140221

27798P

No matching part numbers found

27799 - THRUST BEARING,A/T POWER TRAIN

MD754595

MR305718

MD757647

MD762027

MD761026

MD756846

27799P

No matching part numbers found

27799Q

No matching part numbers found

27799S

No matching part numbers found

27799T

No matching part numbers found

27799U

No matching part numbers found
