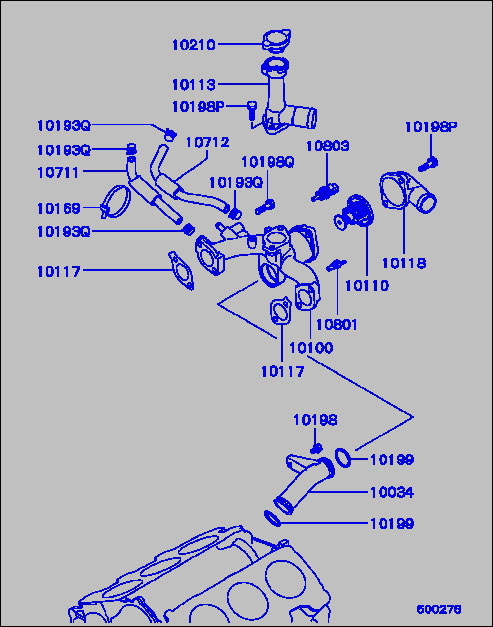

14-120 Engine Coolant Piping
Model Legend
HNFHE - GP(MIVEC), 5FM/T, Feb96-May96
HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97
HNFH3D - GP R(MIVEC), 5FM/T Feb97-
HNFH4D - GP R(MIVEC) 5FM/T, Nov97-
HNGHE - GPX(MIVEC), 5FM/T, Oct94-
HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95
HNHME - GR, 5FM/T, Oct94-
HNHM3D - GR, 5FM/T, May95-
HNHM4D - GR, 5FM/T, Feb96-
HNXME - GX, 5FM/T, Feb97-
HNXM4D - GX2, 5FM/T, Nov97-
HRFHE - GP(MIVEC), 4FA/T, Feb96-May96
HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97
HRGHE - GPX(MIVEC), 4FA/T, Oct94-
HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95
HRHME - GR, 4FA/T, Oct94-
HRHM3D - GR, 4FA/T, May95-
HRHM4D - GR, 4FA/T, Feb96-
HYFH3D - GP R(MIVEC), 5FA/T, Feb97-
HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-
HYGHE - GPX(MIVEC), 5FA/T, Feb97-
HYXME - GX, 5FA/T, Feb97-
HYXM4D - GX2, 5FA/T, Nov 97-
Parts List
10034 - PIPE,WATER PUMP INLET
10100 - CASE,THERMOSTAT
10110 - THERMOSTAT KIT
10113 - FITTING,COOLING WATER OUTLET HOSE
10117 - GASKET,THERMOSTAT CASE
10118 - FITTING,COOLING WATER INLET HOSE
10169
No matching part numbers found
10193Q
No matching part numbers found
10198
No matching part numbers found
10198P
No matching part numbers found
10198Q
No matching part numbers found
10199 - O-RING,COOLING WATER LINE
10210 - Cap Assy,
10711 - HOSE,THROTTLE BODY WATER FEED
10712 - HOSE,THROTTLE BODY WATER RETURN
10801 - GAUGE UNIT,WATER TEMPERATURE
10803 - SENSOR UNIT,WATER TEMPERATURE
