13-020 Fuel Lines and Clips
Model Legend
HNFHE - GP(MIVEC), 5FM/T, Feb96-May96
HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97
HNFH3D - GP R(MIVEC), 5FM/T Feb97-
HNFH4D - GP R(MIVEC) 5FM/T, Nov97-
HNGHE - GPX(MIVEC), 5FM/T, Oct94-
HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95
HNHME - GR, 5FM/T, Oct94-
HNHM3D - GR, 5FM/T, May95-
HNHM4D - GR, 5FM/T, Feb96-
HNXME - GX, 5FM/T, Feb97-
HNXM4D - GX2, 5FM/T, Nov97-
HRFHE - GP(MIVEC), 4FA/T, Feb96-May96
HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97
HRGHE - GPX(MIVEC), 4FA/T, Oct94-
HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95
HRHME - GR, 4FA/T, Oct94-
HRHM3D - GR, 4FA/T, May95-
HRHM4D - GR, 4FA/T, Feb96-
HYFH3D - GP R(MIVEC), 5FA/T, Feb97-
HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-
HYGHE - GPX(MIVEC), 5FA/T, Feb97-
HYXME - GX, 5FA/T, Feb97-
HYXM4D - GX2, 5FA/T, Nov 97-

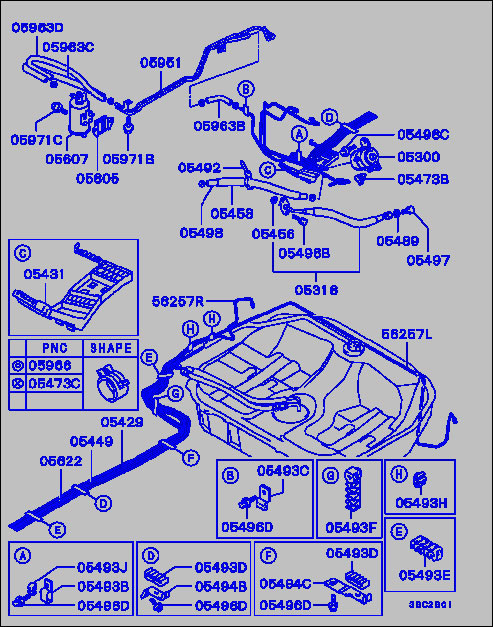

Parts List
05300 - FUEL FILTER
05316 - HOSE,FUEL FILTER HIGH PRESSURE
05429 - PIPE,FUEL RETURN
05449 - PIPE,FUEL LINE
05456 - O-RING,FUEL LINE
05458 - TUBE,FUEL RETURN LINE
MB044011 - USE MB133481 INSTEAD
05473B - CLIP,FUEL LINE
05473C - CLIP,FUEL RETURN LINE
05489 - GASKET,FUEL LINE
05492 - BAND,FUEL LINE
05493B - CLIP,FUEL LINE
05493C - CLIP,FUEL LINE
05493D - CLIP,FUEL LINE
05493E - CLIP,FUEL LINE
05493F - CLIP,FUEL LINE
05493H - CLIP,FUEL LINE
05493J - CLIP,FUEL LINE
05494B - CLAMP,FUEL LINE
05494C - CLAMP,FUEL LINE
05496B - BOLT,FUEL LINE
05496C - BOLT,FUEL LINE
05496D - BOLT,FUEL LINE
05497 - EYEBOLT,FUEL LINE
05498 - HOSE,FUEL RETURN LINE
05605 - BRACKET,FUEL VAPOR CANISTER
05607 - CANISTER,FUEL VAPOR
05622 - PIPE,FUEL VAPOR
05951 - PIPE,FUEL VAPOR CONTROL LINE
05963B - HOSE,FUEL VAPOR CONTROL LINE
05963C - HOSE,FUEL VAPOR CONTROL LINE
05963D - HOSE,FUEL VAPOR CONTROL LINE
05966 - CLIP,FUEL VAPOR CONTROL LINE
05971B - BOLT,FUEL VAPOR CONTROL LINE
05971C - BOLT,FUEL VAPOR CONTROL LINE
56257L - TUBE,BRAKE MAIN,LH
56257R - TUBE,BRAKE MAIN,RH
