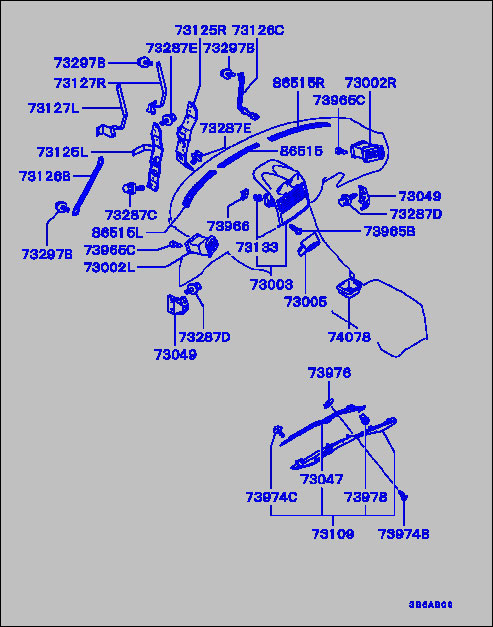

52-010-2 Dashboard Brackets and Clips

part breakdown

Model Legend

HNFHE - GP(MIVEC), 5FM/T, Feb96-May96

HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97

HNFH3D - GP R(MIVEC), 5FM/T Feb97-

HNFH4D - GP R(MIVEC) 5FM/T, Nov97-

HNGHE - GPX(MIVEC), 5FM/T, Oct94-

HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95

HNHME - GR, 5FM/T, Oct94-

HNHM3D - GR, 5FM/T, May95-

HNHM4D - GR, 5FM/T, Feb96-

HNXME - GX, 5FM/T, Feb97-

HNXM4D - GX2, 5FM/T, Nov97-

HRFHE - GP(MIVEC), 4FA/T, Feb96-May96

HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97

HRGHE - GPX(MIVEC), 4FA/T, Oct94-

HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95

HRHME - GR, 4FA/T, Oct94-

HRHM3D - GR, 4FA/T, May95-

HRHM4D - GR, 4FA/T, Feb96-

HYFH3D - GP R(MIVEC), 5FA/T, Feb97-

HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-

HYGHE - GPX(MIVEC), 5FA/T, Feb97-

HYXME - GX, 5FA/T, Feb97-

HYXM4D - GX2, 5FA/T, Nov 97-

Parts List

73002L - AIR OUTLET,INSTRUMENT PANEL SIDE,LH

MR734389 - ALL MODELS

73002R - AIR OUTLET,INSTRUMENT PANEL SIDE,RH

MR734390 - ALL MODELS

73003 - AIR OUTLET,INSTRUMENT PANEL,CTR

MR734388 - ALL MODELS

73005 - ASHTRAY,INSTRUMENT PANEL

MR734391 - ALL MODELS

73047 - FRAME,PANEL UNDER DRIVER SIDE

MR148750 - ALL MODELS

73049 - BRACKET,INSTRUMENT PANEL SIDE,LWR

MR148706 - ALL MODELS

73109 - PANEL,INSTRUMENT,LWR

MR734455 - ALL MODELS

73125L - REINFORCEMENT, INSTRUMENT PANEL LH

MR148704 - ALL MODELS

73126B - REINFORCEMENT, INSTRUMENT PANEL SIDE

MR148701 - ALL MODELS

73126C - REINFORCEMENT, INSTRUMENT PANEL SIDE

MR148702 - ALL MODELS

73127L - REINFORCEMENT,INSTRUMENT PANEL,CTR LH

MR148710 - ALL MODELS

73127R - REINFORCEMENT,INSTRUMENT PANEL,CTR RH

MR148711 - ALL MODELS

73132 - SPRING,INSTRUMENT PANEL ASHTRAY HOLD

MB604627 - ALL MODELS

73133 - SPRING,CTR AIR OUTLET

MB652510 - ALL MODELS

73287C - BOLT,INSTRUMENT PANEL

MB133273 - ALL MODELS

73287D - BOLT,INSTRUMENT PANEL

MS240121 - ALL MODELS

73287E - BOLT,INSTRUMENT PANEL

MS240141 - ALL MODELS

73297B - SCREW, INSTRUMENT PANEL

MB409438 - ALL MODELS

73965B - SCREW,AIR OUTLET

MF453033 - ALL MODELS

73965C - SCREW,AIR OUTLET

MF453017 - ALL MODELS

73966 - NUT,AIR OUTLET

MB135995 - ALL MODELS

73974B - SCREW,UNDER TRIM

MF453033 - ALL MODELS

73974C - SCREW,UNDER TRIM

MB409438 - ALL MODELS

73976 - NUT,UNDER TRIM

MB135995 - ALL MODELS

73978 - CLIP,UNDER TRIM

MB652510 - ALL MODELS

74078 - PANEL, FLOOR CONSOLE CUP STAND OTR

MR734459 - ALL MODELS

86515 - GARNISH,DEFROSTER

MR734451 - ALL MODELS

86515L - GARNISH, DEFROSTER LH

MR734452 - ALL MODELS

86515R - GARNISH, DEFROSTER RH

MR734442 - ALL MODELS
